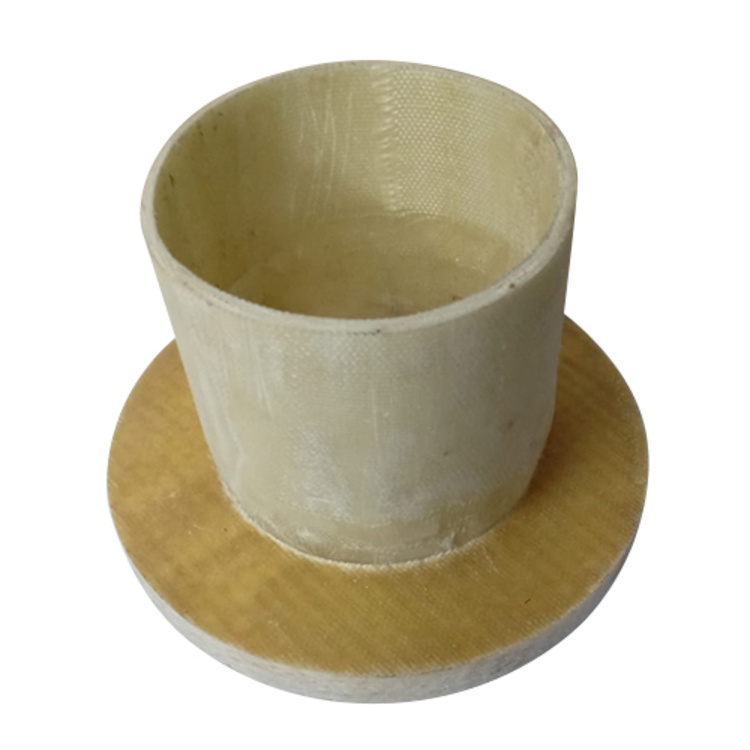

Epoxy Glass Fiber Collar Bush

Epoxy Glass Fiber Collar Bush Specification

Size
Standard Sizes

Power Source
manual

Usage
Industrial

Features
Good Quality

Material
Fiber

Condition
New

Epoxy Glass Fiber Collar Bush Trade Information

Minimum Order Quantity
50 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Epoxy Glass Fiber Collar Bush

What is an Epoxy Glass Fiber Collar Bush?

An Epoxy Glass Fiber Collar Bush is a cylindrical insulating component with a flange or collar, made from epoxy resin-impregnated glass fiber (e.g., G10, G11, FR4). It is widely used for electrical insulation, mechanical spacing, and load distribution in high-voltage and high-temperature environments.

Key Features:

Excellent electrical insulation
High thermal resistance (up to 180220C, depending on the grade)
High mechanical strength and rigidity
Moisture and chemical resistance
Dimensional stability under load

Technical Specifications (Typical):

Parameter	Value / Range
Material	Epoxy Resin + Glass Fiber (G10/G11/FR4)
Outer Diameter (OD)	Custom (e.g., 10 mm 100 mm+)
Inner Diameter (ID)	Custom
Collar Thickness	2 mm 10 mm
Total Length	Custom
Dielectric Strength	10 kV/mm
Temperature Range	-40C to +220C
Flame Retardancy	UL94-V0 (for FR4)

Common Applications:

Industry	Application
Electrical	Bushing in switchgear, transformers
Motors & Generators	Shaft insulation, spacer bushes
Industrial	Mounting support in control panels
Automotive	EV components, thermal barrier bushings
Aerospace	Lightweight insulator for high-load areas
