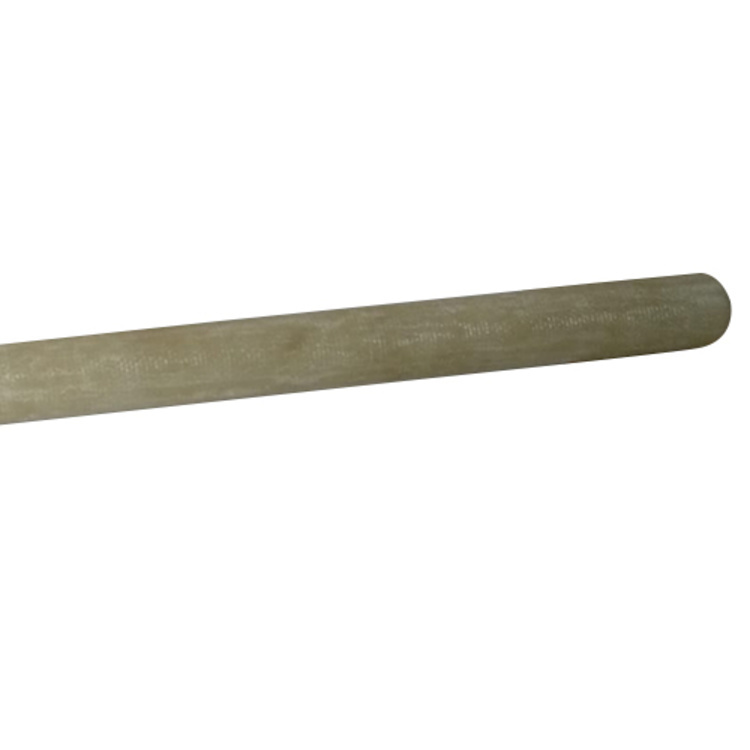

Glass Fiber Bush

Glass Fiber Bush Specification

Usage
Commercial

Power Source
manual

Product Type
Glass Fiber Bush

Features
Good Quality

Material
Fiber

Condition
New

Warranty
1 year

Glass Fiber Bush Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Glass Fiber Bush

Glass Fiber Bush Product Overview

A Glass Fiber Bush is a cylindrical insulating component made from fiberglass-reinforced materials such as epoxy or polyester resins. It is designed to electrically insulate, mechanically support, and resist heat and corrosion, especially in high-performance industrial and electrical systems.

What is a Glass Fiber Bush?

A bush (or bushing) is used to reduce friction, isolate components, or provide insulation between moving or conductive parts.
Glass Fiber Bushes are reinforced with woven fiberglass cloth and molded or machined into shape.
Available as plain bush, collar bush, or flanged bush, depending on the application.

Technical Specifications (Typical):

Property	Value / Range
Material	Glass Fiber + Epoxy/Polyester Resin
Outer Diameter	10 mm 100 mm (or custom)
Inner Diameter	As required
Length	10 mm 150 mm+
Dielectric Strength	10 kV/mm
Temperature Range	-40C to +220C
Flame Retardancy	Available in FR4-grade
Color	Green, Yellow, Natural, Custom
