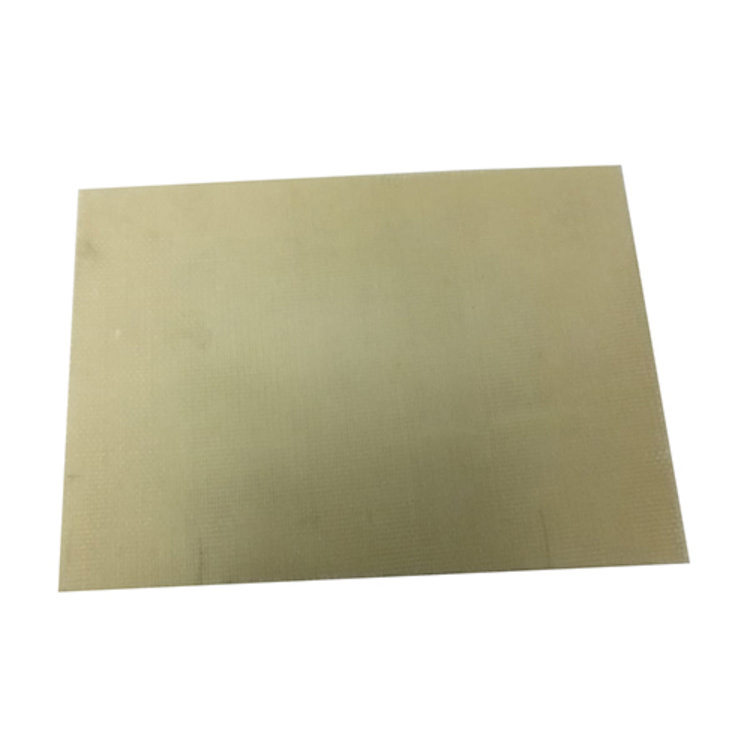

Epoxy Glass Fiber Sheet

Epoxy Glass Fiber Sheet Specification

Warranty
1 year

Features
Good Quality

Size
Standard

Feature
Good Quality

Phase
1

Material
Epoxy Resin & Glass Fiber

Application
Electrical insulation, PCB substrate

Epoxy Glass Fiber Sheet Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Epoxy Glass Fiber Sheet

Epoxy Glass Fiber Sheet Product Overview

An Epoxy Glass Fiber Sheet is a laminated composite insulation material made by combining layers of woven glass fiber cloth with epoxy resin under high temperature and pressure. These sheets are known for their excellent mechanical strength, electrical insulation, and thermal resistance.

Common Material Grades:

Grade	Description
G10	General-purpose grade with good electrical and mechanical properties.
G11	High-temperature grade with excellent thermal resistance.
FR4	Flame-retardant version of G10, widely used in PCBs.

Technical Specifications (Typical):

Property	Value / Range
Material	Glass Fiber Cloth + Epoxy Resin
Thickness	0.2 mm 100 mm
Sheet Size	1000x1000 mm, 1220x2440 mm, or custom
Dielectric Strength	14 kV/mm (varies by grade)
Temperature Resistance	-40C to +180C (G10), up to 220C (G11)
Flame Retardant	Yes (FR4 - UL94 V-0)
Color	Green, Yellow, Natural, Black

Key Features:

High Dielectric Strength
Thermal Resistance
Excellent Mechanical Strength
Moisture Resistance
Chemical & Oil Resistance
Machinable (CNC, cutting, drilling, shaping)

Applications:

Industry	Usage
Electrical	Busbar insulation, transformer barriers
Electronics	PCB base material (FR4), switch panels
Industrial	Gaskets, fixtures, machine insulation
Automotive	Thermal barriers, EV battery enclosures
Aerospace/Defense	Lightweight insulative panels

Other Common Names:

Epoxy Laminate Sheet
Glass Epoxy Sheet
Insulating Sheet G10/G11/FR4
Fiberglass Reinforced Epoxy Sheet
