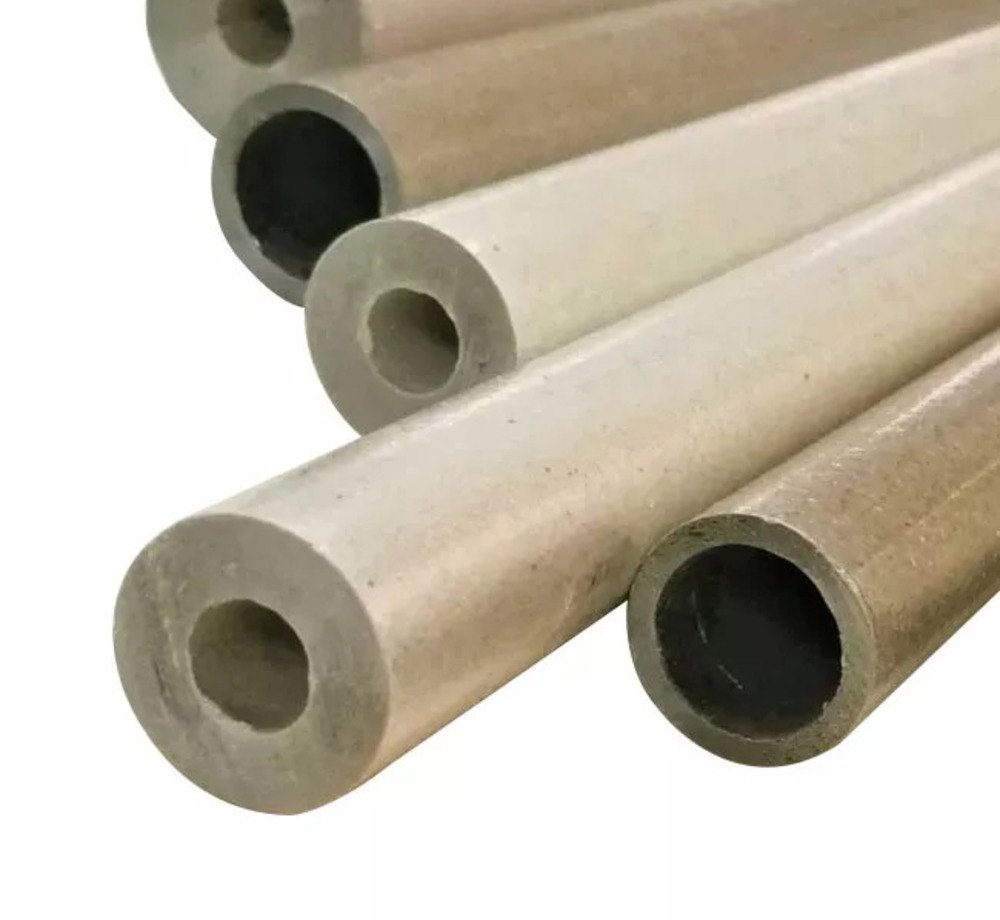

Mica Tube - High Quality Electrical Insulation

Mica Tube - High Quality Electrical Insulation Specification

Material
Insulation for transformer windings, motors

Warranty
1

Product Type
Muscovite Mica Tube Better electrical insulation, stable up to ~500 C Phlogopite Mica Tube Higher thermal resistance (up to ~1000 C) Resin-Bonded Mica Tube Enhanced rigidity and mechanical strength

Application
ndustry Application Electrical Equipment Insulation for transformer windings, motors Power Generation High-voltage coil and terminal sleeves Household Appliances Heating element casing (irons, ovens, etc.) Aerospace & Defense Thermal insulation in compact systems Industrial Heating High-temp tube insulators in furnaces

Color
Silver-grey, Gold, Natural, Brown

Mica Tube - High Quality Electrical Insulation Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
10000 Pieces Per Day

Delivery Time
3 Days

Main Domestic Market
All India

About Mica Tube - High Quality Electrical Insulation

Mica Tube High Quality Electrical Insulation

Product Overview

A Mica Tube is a cylindrical insulating component made by winding or molding high-grade mica paper or mica sheets, often bonded with resins (silicone, epoxy, or shellac). Known for their superior dielectric strength, high-temperature resistance, and mechanical durability, mica tubes are a trusted choice in high-voltage and high-temperature electrical applications.

Construction & Grades:

Type	Description
Muscovite Mica Tube	Better electrical insulation, stable up to ~500C
Phlogopite Mica Tube	Higher thermal resistance (up to ~1000C)
Resin-Bonded Mica Tube	Enhanced rigidity and mechanical strength

Technical Specifications (Typical):

Property	Value / Range
Outer Diameter (OD)	5 mm 300 mm+ (custom available)
Inner Diameter (ID)	As required
Wall Thickness	0.5 mm 10 mm
Length	50 mm 1000 mm+
Temperature Resistance	Up to 1000C (phlogopite)
Dielectric Strength	15 kV/mm
Flame Retardancy	Yes (self-extinguishing)
Color	Silver-grey, Gold, Natural, Brown

Key Features:

Excellent electrical insulation
High thermal resistance (up to 1000C)
Rigid structure with dimensional stability
Resistant to arc, corona, and flame
Non-hygroscopic (doesnt absorb moisture)
Machinable to tight tolerances

Applications:

Industry	Application
Electrical Equipment	Insulation for transformer windings, motors
Power Generation	High-voltage coil and terminal sleeves
Household Appliances	Heating element casing (irons, ovens, etc.)
Aerospace & Defense	Thermal insulation in compact systems
Industrial Heating	High-temp tube insulators in furnaces
