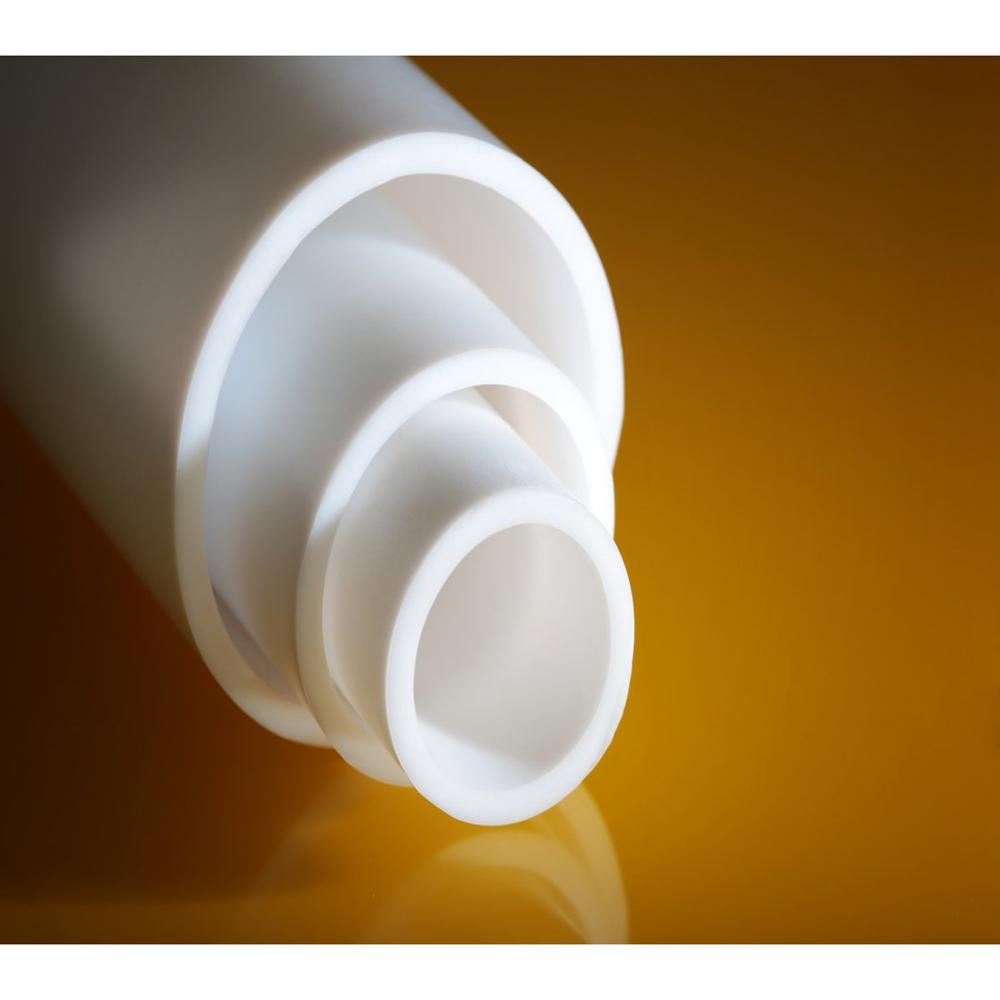

Ptfe Pipe With High Strength

About Ptfe Pipe With High Strength

PTFE Pipe with High Strength Product Overview A PTFE (Polytetrafluoroethylene) Pipe with High Strength is a high-performance fluoropolymer tube known for its exceptional chemical resistance, thermal stability, low friction, and mechanical strength. These pipes are ideal for transporting aggressive chemicals, high-temperature fluids, and gases under demanding conditions. What Makes It High Strength? High-strength PTFE pipes are: Reinforced (sometimes with glass fibers or braided layers) Manufactured with high-density virgin PTFE resin Designed to handle higher pressure and mechanical loads compared to standard PTFE tubing Technical Specifications (Typical): PropertyValue / RangeMaterialVirgin PTFE / Glass-Filled PTFEOuter Diameter (OD)3 mm 300 mm (custom available)Inner Diameter (ID)As requiredWall Thickness0.5 mm 10 mm+Operating Temperature-200C to +260CTensile Strength 20 MPa (can go higher with reinforcement)Working PressureUp to 100 bar (depends on thickness)ColorWhite / Off-white / Transparent Key Features: Excellent chemical resistance (resistant to almost all acids, bases, and solvents) High thermal stability (continuous use at 260C) High mechanical strength (especially in reinforced grades) Non-stick & low-friction surface UV and weather resistant Non-reactive and non-toxic Applications: IndustryApplicationChemical ProcessingAcid, base, solvent transferPharmaceuticalsUltra-pure fluid handlingFood & BeverageFDA-compliant PTFE for hygienic pipingAerospace/DefenseLightweight, non-reactive fluid systemsElectronicsInsulated conduit for corrosive environments PTFE vs. Other Fluoroplastics: MaterialMax TempChemical ResistanceMechanical StrengthPTFE260CExcellentModerate to High (when reinforced)PFA260CExcellentBetter flexibilityFEP200CGoodModerate Related Products: PTFE Lined Pipes PTFE Corrugated Flexible Tubes PTFE Rods and Bushes Glass-Filled PTFE Pipes
